RSF-141-50CW
Semi Flexible (Hand Formable) Cable, 0.141¡± Size, by
Specification Mil-C-17/130(RG402) Type
MECHANICAL DATA
ITEM MATERIAL DIAMETER REMARK
CENTER CONDUCTOR SPCW
0.94±0.013mm
DIELECTRIC
PTFE 2.98±0.050mm SOLID
OUTER SHIELD Tinned Copper 3.56±0.050mm BRAID/100% COVERAGE

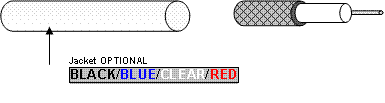

JACKET(Optional) PVC/PE/FEP 4.58±0.050mm BLACK/BLUE/CLEAR/RED
* SPCW: Silver Plated Copper clad steel Wire
* PVC: Polyvinyl Chloride
* FEP: Fluorinated Ethylene Propylene
* PE: PolyEthylene
ELECTRICAL DATA
ITEM SPECIFICATION
BEND RADIUS 10.0 mm (min)
CONDUCTOR
RESISTANCE 19.3 Ohms/Mft at 20¡É (max.)
CAPACITANCE 95.1
pF/m (29.0 pF/ft) (nom.)
CHARACTERISTIC
IMPEDANCE 50 +- 2 ohms
DIELECTRIC
CONSTANT 2.07 (nom.)
OPERATING
FREQUENCY 20 GHz (max.)
OPERATING TEMP
-40° C ¡ +125° C
VELOCITY OF
PROPAGATION 69.5 % (nom.)
VOLTAGE
WITHSTANDING 7,500 vrms @ 60 Hz
RoHS Compliant YES
WEIGHT 39 kg/km (2.4lbs/100ft)
MAXIMUM
ATTENUATION
Frequency (MHz) dB/100ft(dB/m) Power (Watts)
500 8(0.26) 600
1,000 12(0.39) 450
5,000 29(0.95) 180
10,000
45(1.48) 120
20,000 70(2.30) 70 |
