RG 223

RG Series, 5.38mm(0.212)OD, 50ohm Specification Mil-C-17/84-RG223

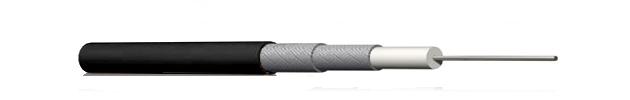

MECHANICAL DATA



ITEM                     MATERIAL       DIAMETER             REMARK



CENTER CONDUCTOR   SPC                0.89±0.01mm       Strand 1/0.889mm

DIELECTRIC               PE                  2.95±0.05mm      SOLID

1st OUTER SHIELD         SPC                3.45±0.15mm      95.%(nom.)

2nd OUTER SHIELD        SPC                3.90±0.15mm      94.0%(nom.)

JACKET                     PVC               5.4±0.10mm        BLACK

* SPC: Silver Plated Copper



ELECTRICAL DATA



ITEM                              SPECIFICATION



CAPACITANCE                   101.0 pF/m (nom.)

CHARACTERISTIC IMPEDANCE  50±2

OPERATING FREQUENCY           12.4 GHz

OPERATING TEMP                  -40 +85

OPERATING VOLTAGE            1,900 vrms (max.)

WEIGHT                             58 kgs/Km

MAXIMUM ATTENUATION

Frequency (MHz)             dB/100ft (dB/M)   Power (Watts)



              100               4.2(0.14)

              200               5.7(0.19)

              400               9.0(0.30)

              700               12.2(0.4)

            1,000               14.8(0.49)
