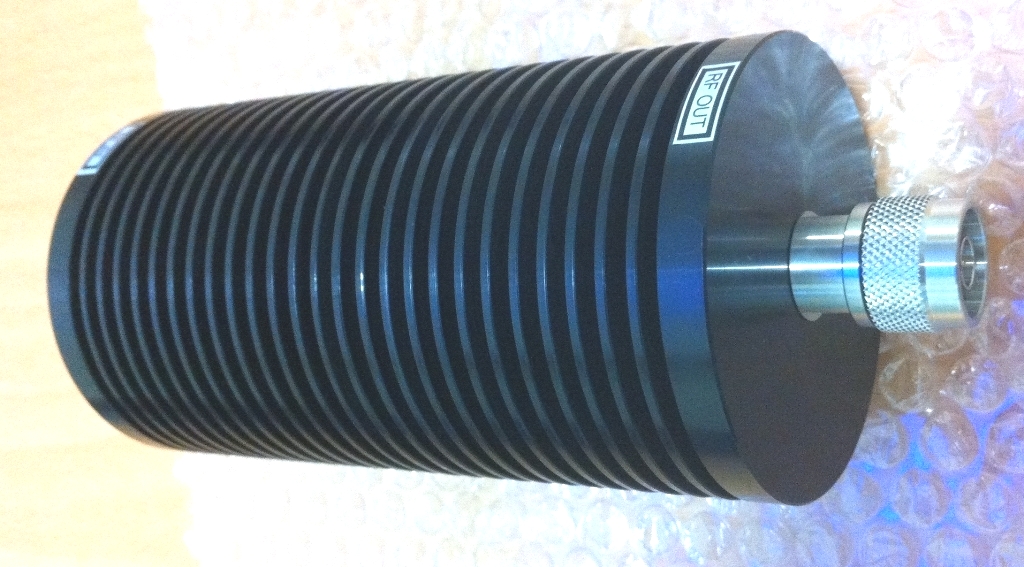

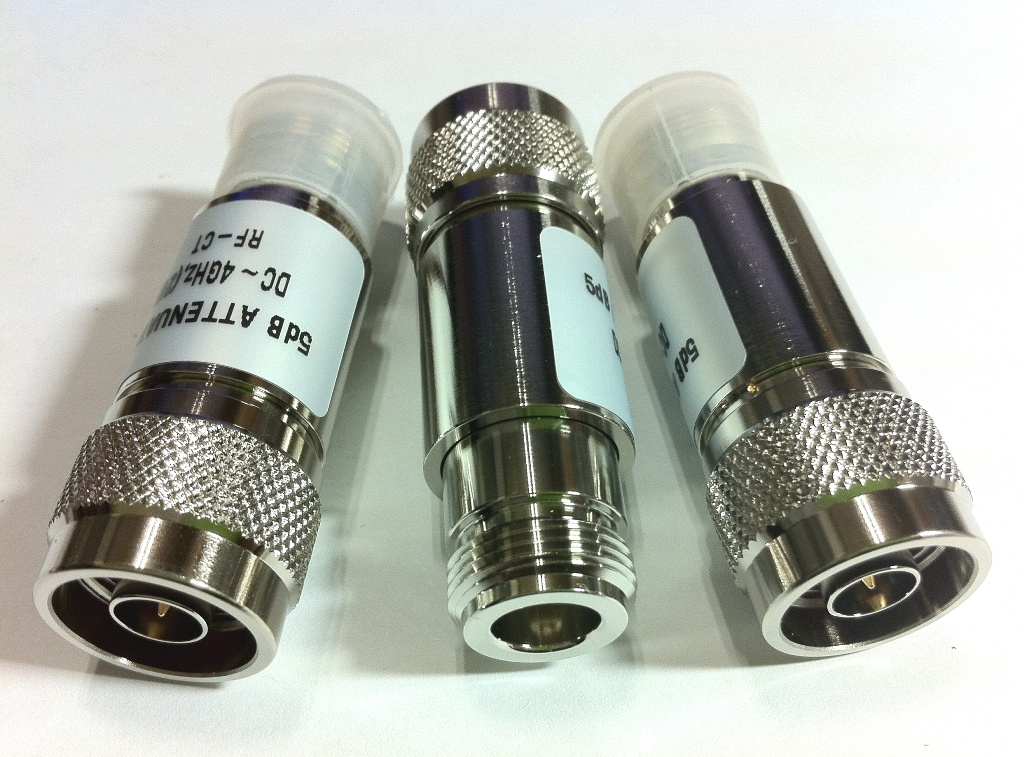

Home  |  Sitemap  |  Contact us About us Contact us RF coaxial connectors Passive components Coaxial cable assemblies RF antennas & Springs Coaxial Cables Frequency Range Chart Cable Group Reliability RF Link Q & A Inquiry Home > Product > Passive components > RF Attenuators Our N type RF Attenuators are designed for a wide variety of RF and microwave applications and to meet excellently the requirements of : · design and engineering · test and measurement · built-in items for systems Fixed attenuators are mainly used to reduce the power level of RF signals by a certain amount. The output signal is reduced with respect to the input. Ref. Products ; -. 250Watt-200W N type attenuator rf microwave coax - Square heat sink type -. 100Watt N type attenuator rf microwave coax - Round heat sink type -. 50Watt N type attenuator rf microwave coax -. 5Watt attenuator N type Round MW rf coax -. 2Watt N type attenuator MW rf coax P/N Frequency(GHz) Power(W) Attenuation(dB) V.S.W.R.(Max.) Remark   RE8N105101 DC~2.5 1 5.0±0.4 1.20   RE8N110101 DC~2.5 1 10±0.5 1.20   RE8N120101 DC~2.5 1 20±1.0 1.20   RE8N130101 DC~2.5 1 30±1.5 1.20   RE8N110201 DC~2.5 2 10±0.5 1.20   RE8N120201 DC~2.5 2 20±1.0 1.20   RE8N130201 DC~2.5 2 30±1.0 1.20   RE8N110301 DC~2.5 5 10±0.5 1.20   RE8N120301 DC~2.5 5 20±1.0 1.20   RE8N130301 DC~2.5 5 30±1.0 1.20   RE8N110801 DC~2.5 50 10±0.5 1.20   RE8N120801 DC~2.5 50 20±1.0 1.20   RE8N130801 DC~2.5 50 30±1.0 1.20   RE8N110901 DC~2.5 100 10±0.5 1.25   RE8N120901 DC~2.5 100 20±1.0 1.25   RE8N130901 DC~2.5 100 30±1.0 1.25   RE8N140901 DC~2.5 100 40±1.0 1.25
