RF Arrestors RF Arrestors Home > Product > Passive components > RF Arrestors
Our high quality Lightning Protection Components (RF Arrestors/Surge Protectors) are available for applications in the frequency range from DC to 7.5GHz. Many of our products have set world-wide industry standards. Our product portfolio includes protectors for almost every RF application like
This Product has both the long-term RF and protection experience and know how to provide leading edge designs and solutions.
Protection technologies
· quarter-wave shorting stub(also available with additional high-pass filter)
· gas tube(also available with additional high-pass filter/DC block)
RF Arrestors

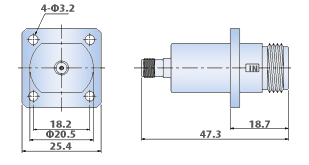

Rf arrestor : SMA Jack to N Type Jack
Rf arrestor : SMA Jack to N Type Jack SMA Jack to N Type Jack - 4Hole Flange

P/N RA1N120402 RA1N120412
Frequency Range[MHz] 800 ~ 900 1,900 ~ 2,200
VSWR[Max.] 1.15
Insertion Loss[dB/Max.] 0.1
Surge Current Handling
Capability
5KA, Test Pulse (8/20งม)
Maximum Power
Rating[W]
80
Operation Temperature
Range
-40 ~ +85 กษ

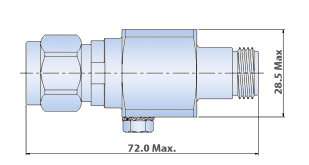

Rf arrestor : 7/16 Plug to Jack
Rf arrestor : 7/16 Plug to Jack 7/16 Plug to Jack -Straight-

P/N RG1G130102
Frequency Range[MHz] 1,700 ~ 2,400
VSWR[Max.] 1.10
Insertion Loss[dB/Max.] 0.1
Surge Current Handling
Capability
5KA, Test Pulse (8/20งม)
Maximum Power
Rating[W]
500
Operation Temperature
Range
-40 ~ +85 กษ

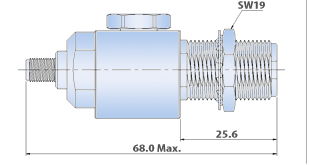

RF Arrestor : SMA Jack to N Type Jack
Arrestor : SMA Jack to N Type Jack SMA Jack to N Type Jack -Bulkhead Feedthru-

P/N RA1N120422 RA1N120432
Frequency Range[MHz] 800 ~ 900 1,900 ~ 2,200
VSWR[Max.] 1.15
Insertion Loss[dB/Max.] 0.1
Surge Current Handling
Capability
5KA, Test Pulse (8/20งม)
Maximum Power
Rating[W]
80
Operation Temperature
Range
-40 ~ +85 กษ

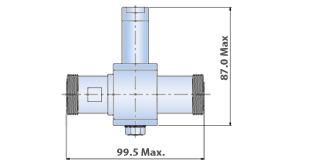

RF Arrestor : 7/16 Plug to Jack
Arrestor : 7/16 Plug to Jack 7/16 Plug to Jack -Straight-

P/N RG1G130112
Frequency Range[MHz] 824 ~ 2,600
VSWR[Max.] 1.2
Insertion Loss[dB/Max.] 0.1
Surge Current Handling
Capability
100KA, Test Pulse (8/20งม)
Maximum Power
Rating[W]
500
Operation Temperature
Range
-40 ~ +85 กษ

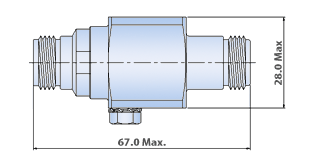

RF Arrestor : N Type Jack to Jack
Arrestor : N Type Jack to Jack N Type Jack to Jack -Straight-

P/N RN1N120102 RN1N120112
Frequency Range[MHz] 824 ~ 960 1,700 ~ 2,200
VSWR[Max.] 1.15
Insertion Loss[dB/Max.] 0.1
Surge Current Handling
Capability
15KA, Test Pulse (8/20งม)
Maximum Power
Rating[W]
200
Operation Temperature
Range
-40 ~ +85 กษ

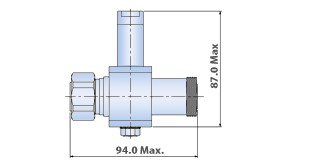

RF Arrestor : 7/16 Jack to Jack
Arrestor : 7/16 Jack to Jack 7/16 Jack to Jack -Straight-

P/N RG1G120102
Frequency Range[MHz] 824 ~ 2,600
VSWR[Max.] 1.2
Insertion Loss[dB/Max.] 0.1
Surge Current Handling
Capability
100KA, Test Pulse (8/20งม)
Maximum Power
Rating[W]
500
Operation Temperature
Range
-40 ~ +85 กษ

RF Arrestor : N Type Jack to Jack
Arrestor : N Type Jack to JackN Type Jack to Jack -Straight-

P/N RN1N130102 RN1N130112
Frequency Range[MHz] 824 ~ 960 1,700 ~ 2,200
VSWR[Max.] 1.15
Insertion Loss[dB/Max.] 0.1
Surge Current Handling
Capability
15KA, Test Pulse (8/20งม)
Maximum Power
Rating[W]
200
Operation Temperature
Range
-40 ~ +85 กษ

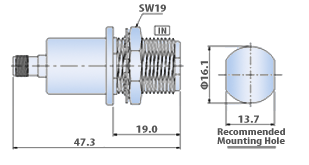

RF Arrestor : SMA Jack to N Type Jack
Arrestor : SMA Jack to N Type Jack SMA Jack to N Type Jack -Bulkhead Feedthru-

P/N RA1N120202 RA1N120212
Frequency Range[MHz] DC ~ 2,500
VSWR[Max.] 1.2
Insertion Loss[dB/Max.] 0.2
Surge Current Handling
Capability
15KA,
Test Pulse
(8/20งม)
20KA,
Test Pulse
(8/20งม)
Maximum Power
Rating[W]
90 230
Operation Temperature
Range
-40 ~ +85 กษ

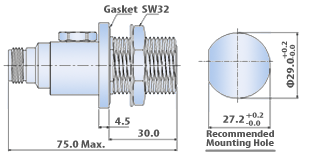

RF Arrestor : N Type Jack
Arrestor : N Type JackN Type Jack -Bulkhead Feedthru-

P/N RN1N120202 RN1N120212
Frequency Range[MHz] DC ~ 2,650
VSWR[Max.] 1.15
Insertion Loss[dB/Max.] 0.2
Surge Current Handling
Capability
15KA,
Test Pulse
(8/20งม)
20KA,
Test Pulse
(8/20งม)
Maximum Power
Rating[W]
90 230
Operation Temperature
Range
-40 ~ +85 กษ

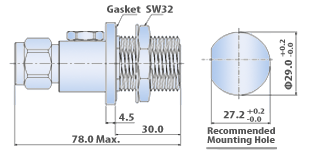

RF Arrestor : N Type Jack to 7/16
Arrestor : N Type Jack to 7/16 N Type Jack to 7/16 -Bulkhead Feedthru-

P/N RN1G120202 RN1G120212
Frequency Range[MHz] DC ~ 2,650
VSWR[Max.] 1.15
Insertion Loss[dB/Max.] 0.2
Surge Current Handling
Capability
15KA,
Test Pulse
(8/20งม)
20KA,
Test Pulse
(8/20งม)
Maximum Power
Rating[W]
90 230
Operation Temperature
Range
-40 ~ +85 กษ

RF Arrestor : N Type Jack to 7/16
Arrestor : N Type Jack to 7/16 N Type Jack to 7/16 -Bulkhead Feedthru-

P/N RN1G130202 RN1G130212
Frequency Range[MHz] DC ~ 2,650
VSWR[Max.] 1.15
Insertion Loss[dB/Max.] 0.2
Surge Current Handling
Capability
15KA,
Test Pulse
(8/20งม)
20KA,
Test Pulse
(8/20งม)
Maximum Power
Rating[W]
90 230
Operation Temperature
Range
-40 ~ +85 กษ
