Compression springs

   Compression spring is coiled helical spring that resist a compressive force applied axially.

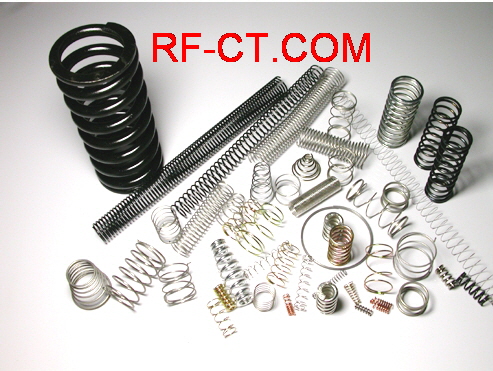

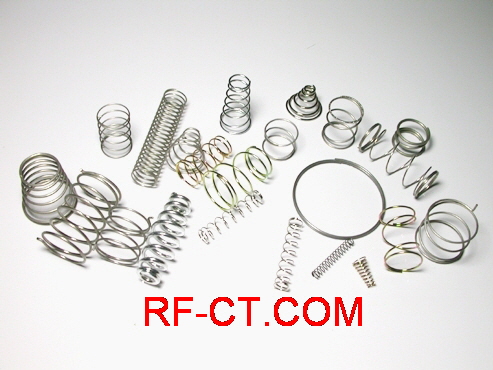

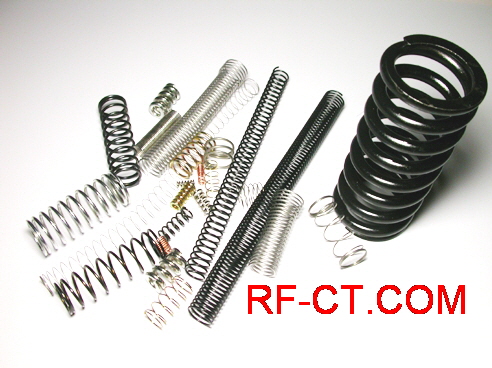

Compression spring Photo(s)

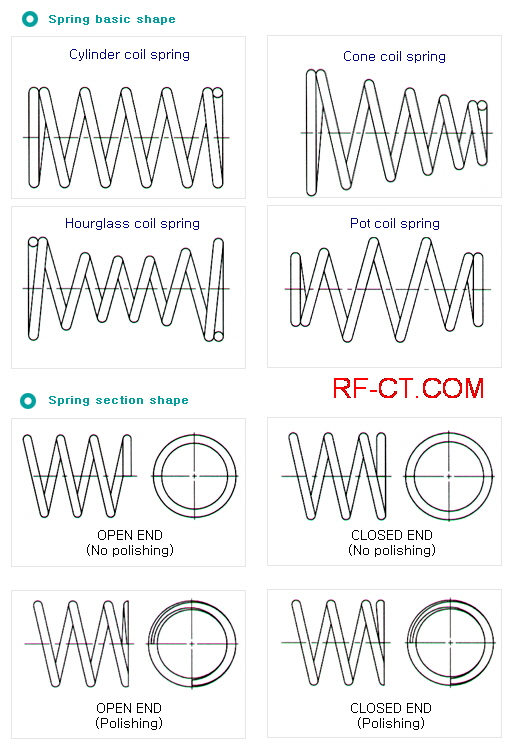

Spring Shape

   Cylinder coil spring, Hourglass coil spring, Cone coil spring, Port coil spring

.

Working Extent

    Available wire diameter: ø0.1mm ~  ø15mm.

Usage

    Car, Industrial machine, Brake, Absorber, Steering, Door Hinge, Transmission,

     Agricualtural machine, Heavy equipment

Spring Design Formulation



Basic Formula of Spring Design

Material G value f/ E value f/

Hard Drawn Steel Wire 8 X 21 X


Piano string

8 X 21 X

Oil temper string 8 X 21 X

Stainless steel string STS 302 7.0 X 18.5 X
STS 304
STS 316
STS 321 JI 7.5 X 20 X

Brass string 4 X

10 X


Nickel Silver Wire 4 X 11 X

Phosphor Bronze Wire 4.3 X 11 X

Beryllium copper string 4.5 X 12 X
