RF Coaxial Cable Connectors RF Coaxial P/B & PCB Connectors
SMB Connectors RF sub Miniature connectors are designed for applications from DC up to 4 GHz. The SMB snap-on mechanism provides a fast and reliable connection for applications with high packing densities. SMB connectors are used for the internal wiring in fixed and mobile communication equipment as well as in automotive applications.The sub Miniature connectors Series SMB, SMC, SMS have the same basic design. They only differ with regard to their coupling mechaNickelsm.
SMB connector line offers a cost effective solution for digital cellular PCN, Global Positioning System (GPS) and wireless LAN system.

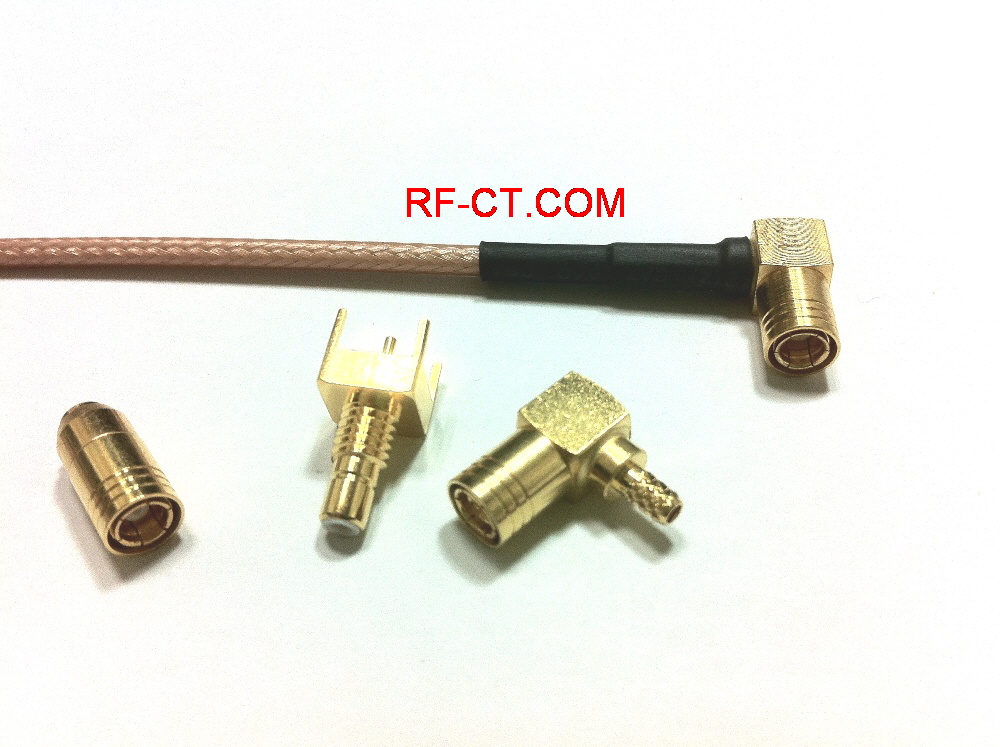

SMB Connectors RF Coaxial

SMB Connectors RF Coaxial Type

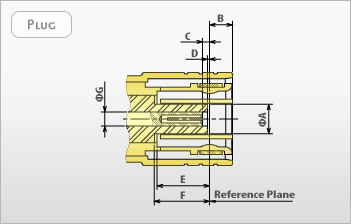

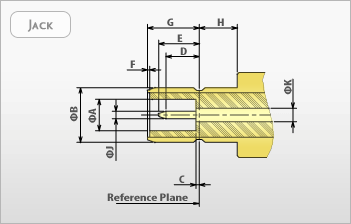

SMB Connectors RF Coaxial - Plug Interface SMB Connectors RF Coaxial - Jack Interface
  Min.(mm) Max.(mm)

A - 2.06
B - 1.63
C 0.18 0.94
D 0.18 -
E 3.58 -
F 3.58 -
G 0.95 Nom.

  Min.(mm) Max.(mm)

A 2.08 -
B 3.66 3.71
C - 0.18
D 1.32 -
E - 2.97
F 0.00 -
G 3.33 3.58
H 1.65 -
J 0.48 0.53
K 0.95 Nom.

Material Electrical
Requirements Specifications

Body Brass Au Plated,
Nickelckel Plated
C-Ring Beryllium Copper Au Plated
Center Contacts Brass or
Beryllium Copper
Au Plated
Insulator PTFE Teflon

Requirements Specifications

Normal
Impedance
50
VSWR Straight DC~4
Max. 1.30
Right Angle DC~3
Max. 1.35
Insertion Loss 0.2× f : Frequency()
Insulation
Resistance
DC 500V 1,000 Min.
Contact
Resistance
Inner Conductor : 6.0m Max.
Outer Conductor : 1m Max.

Mechanical Environmental
Requirements Specifications

Outer Force Engage : 0.82~6.44Kgf,
Disengage : 0.82~6.44Kgf
Center Force Engage : 1.1Kgf Max.,
Disengage : 0.03Kgf Min.
Connector
Durability
500 Cycles MIL-C-39012

Requirements Specifications

Vibration MIL-STD-202, Method 204
Thermal Shock MIL-STD-202, Method 107D,
Test Condition B
Corrosion
(Salt Spray)
MIL-STD-202, Method 101D,
Test Condition B
Humidity
(Steady State)
MIL-STD-202, Method 103B,
Test Condition B
