RF N Type Cable Connectors Home > Product > RF coaxial connectors > N type Connectors RF
RF N Type Cable Connectors RF N Type Cable Connectors with Panel and Bulkhead RF N Type In-series Adapters
N type Connectors RF type are medium size precision connectors for use from DC through 11GHz and feature a characteristic 50ohm impedance structure. Applications for N type connectors include base station equipment. The connector performance is per MIL-C-39012, with commercial grade versions available for the most popular configurations. Cable terMin.ations include clamp and crimp styles. Many types are available for the most widely used coaxial cables.
Ref. Product : RF DC Block - N type Microwave Coaxial Type
N Type Connectors RF - Coaxial

N Type Connectors RF - Coaxial Family

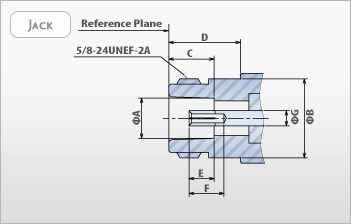

N Type Connectors RF Coaxial - Plug Interface N Type Connectors RF Coaxial - Jack Interface
  Min.(mm) Max.(mm)

A 7.95 8.03
B 16.00 -
C 0.08 -
D 2.79 3.56
E 5.33 -
F - 3.15
G 0.41 1.52

  Min.(mm) Max.(mm)

A 8.03 8.13
B - 15.93
C 9.04 9.19
D 10.72 -
E 4.75 5.26
F 5.33 -
G - 3.15

Material Electrical
Requirements Specifications

Body Brass Au Plated,
Nickelckel Plated,
Silver Plated,
3Mat'l Plated
Coupling Nut Brass or
Stainless
Steel(STS303)
Nickelckel Plated,
Passivate
Center Contacts Brass or
Beryllium Copper
Au Plated,
Silver Plated
Insulator PTFE Teflon
Gasket Silicon Rubber

Requirements Specifications

Normal
Impedance
50
VSWR Straight DC~6 Max. 1.3,
Right Angle DC~6 Max. 1.5
Insertion Loss 0.07× f : Frequency()
Insulation
Resistance
DC 500V 7,000 Min.
Contact
Resistance
Inner Conductor : 1m Max.,
Outer Conductor : 1m Max.

Mechanical Environmental
Requirements Specifications

Coupling Nut
Retention Force
45.9Kgf Min.
Coupling Nut
Mating Force
Proof Torque:16.5Kgf.Cm Min.,
Recommended Mating orque:
6.6~11.1Kgf.Cm
(Hex Nut 16.5~18.1Kgf.Cm)
Center Force Engage :0.9Kgf Max.,
Disengage : 0.06Kgf Min.
Connector
Durability
500 Cycles MIL-C-39012

Requirements Specifications

Vibration MIL-STD-202, Method 204
Thermal Shock MIL-STD-202, Method 107D,
Test Condition B
Corrosion
(Salt Spray)
MIL-STD-202, Method 101D,
Test Condition B
Humidity
(Steady State)
MIL-STD-202, Method 103B,
Test Condition B
