SMB Connectors RF?

 Introduction of SMB Connectors - RF & Connector Technology

  SMB Connectors RF Coaxial type was designed to use with frequency range between DC to 4GHz. This structure of RF SMB connectors Snap-on mating system garantees quick and reliable connections. SMB connectors are widely used for indoor cable connectiion or wired/wireless telecom equiments as well as vehicle industries.  SMB, SMC, SMS connectors which are series of sub miniature connecors share basic structure.  The only difference is coupling mechanism.  SMB connectors are a best ecomic solution with excellent performance for digital cellular PCN, GPS system and wireless LAN systems.

  By the polarity types, these are called by SMB plug, SMB jack, SMB male and SMB female etc.

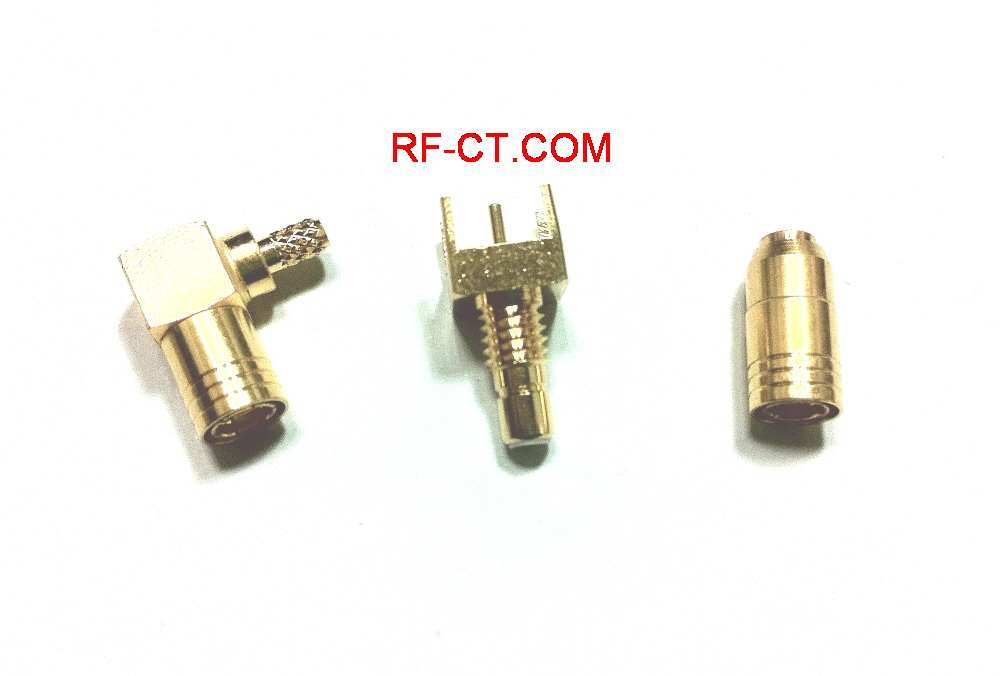

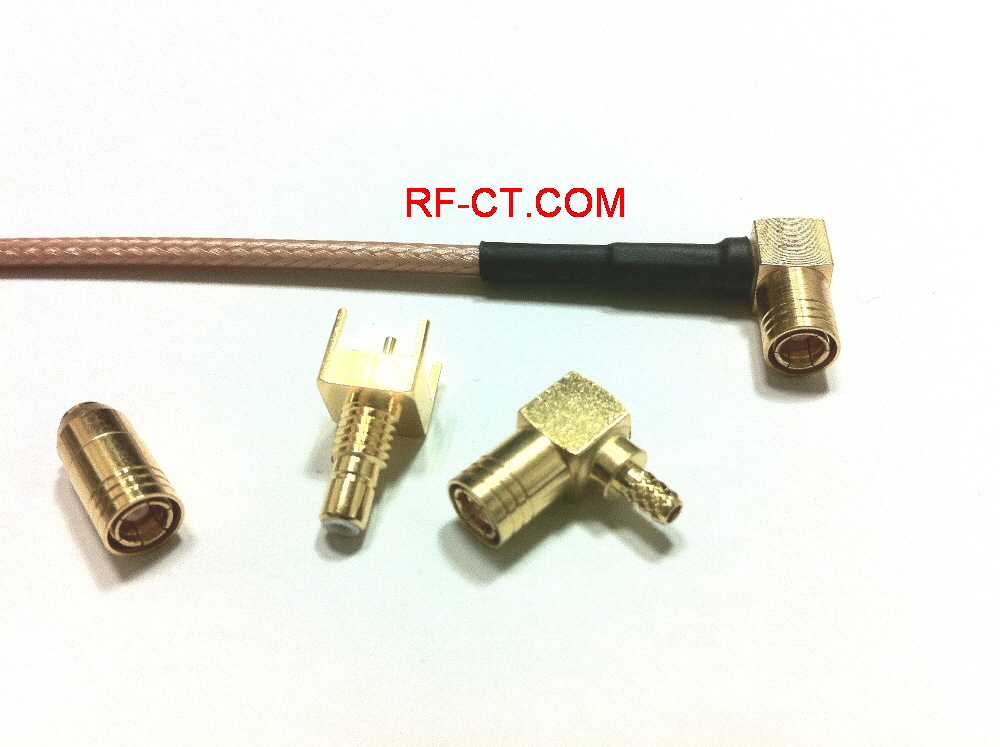

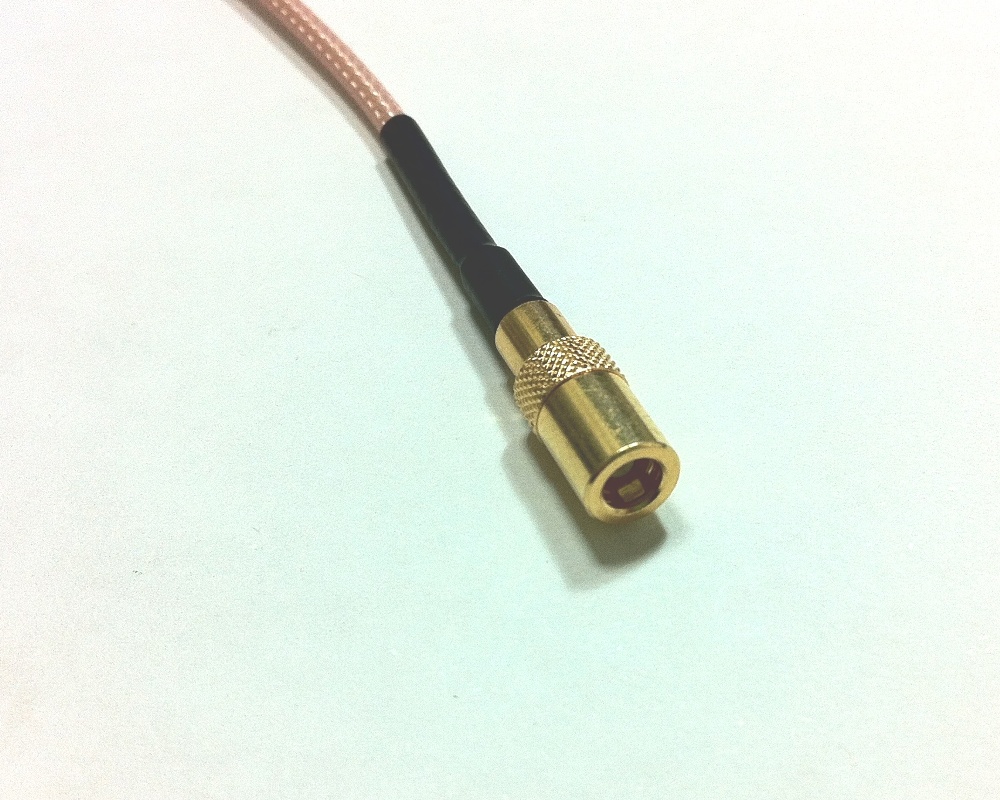

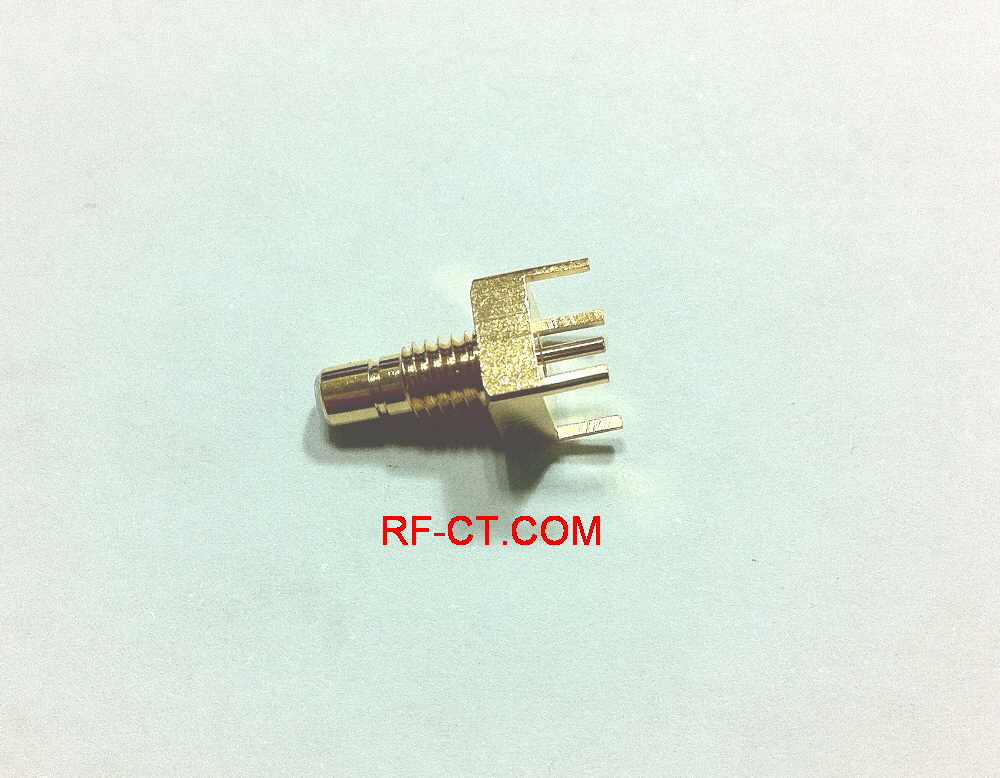

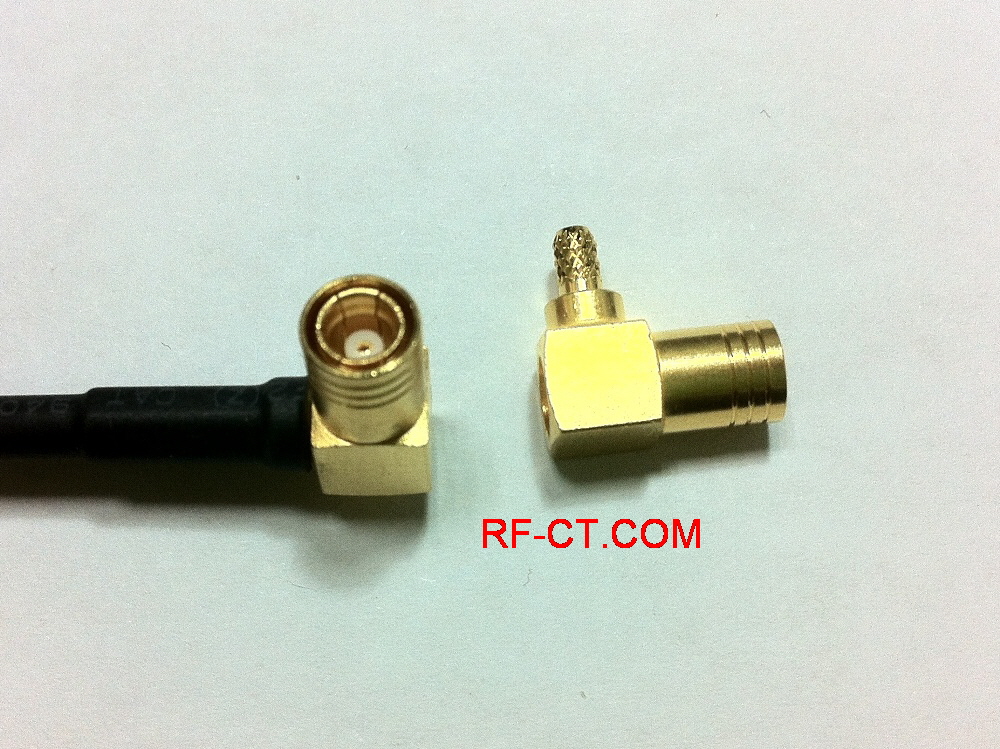

  Photos:

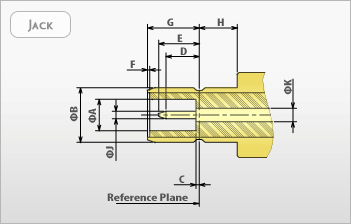

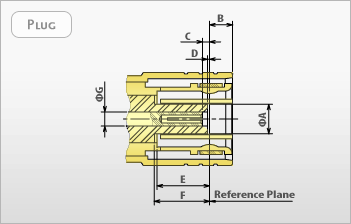

Interface Dimension:

<<SMB Connectors Specification>>

<<SMB Connectors for Semi Rigid Cables>>

<<SMB Connectors for Flexible and RG cables>>

<<SMB Connectors for Bulk Head type and PCB>>
