RF Connectors PLSB?

 Introduction of RF Connectors PLSB - RF & Connector Technology

  RF connectors PLSB group are designed for applications up to 6 GHz, as required by today's and tomorrow's radio base stations. The interface is based on the SMB(SubMin.iature Version B) dimension. The PLSB offers an easier, faster and saver coupling operation. The plug connector is strong in the chape in the closed entry structure.

  As other connector types, these materials are called per their polarities as PLSB Plug, PLSB Jack, PLSB male, PLSB female etc.

 Interface Dimension:

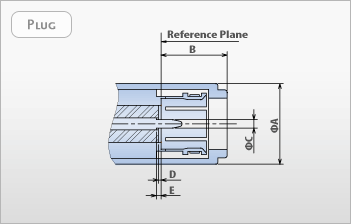

RF Connectors PLSB - Plug Interface

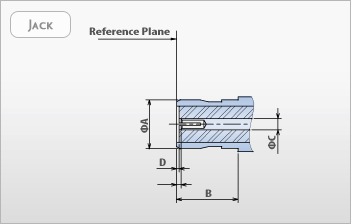

RF Connectors PLSB - Jack Interface

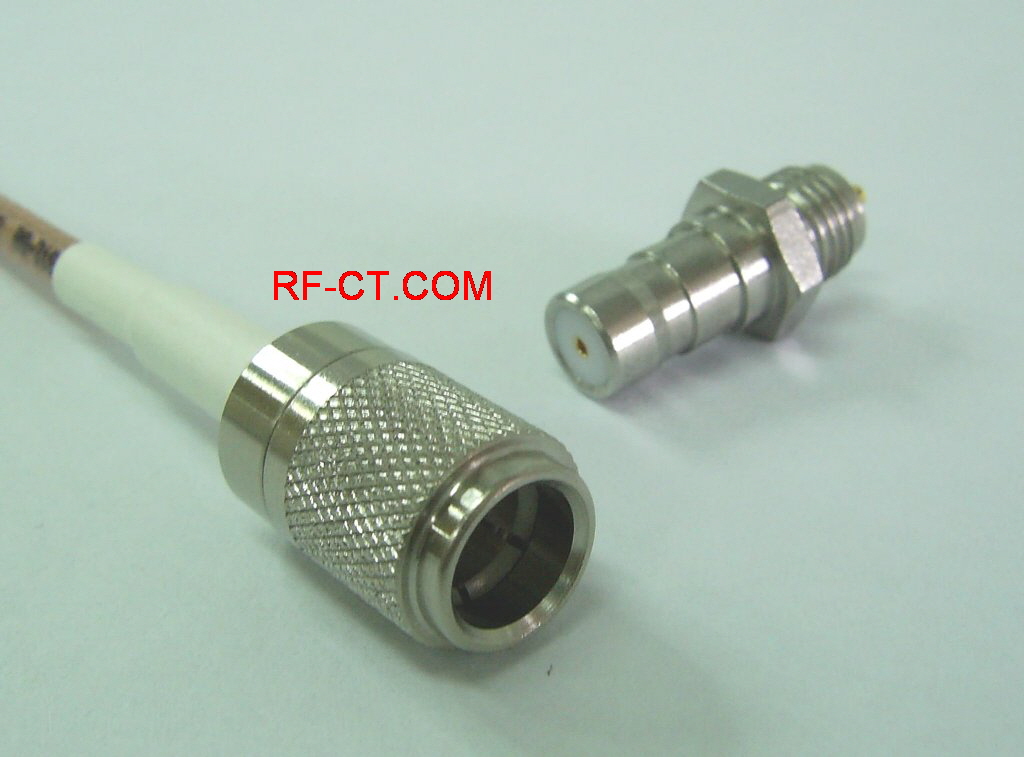

RF Connectors PLSB photo


Click below URL for more detailed information about PLSB connectors!

<<RF Connectors PLSB Specification>>

<<RF Connectors PLSB for Semi Rigid Cables>>

<<RF Connectors PLSB for Bulk Head type an PCB>>
