MMCX Connectors RF?

 Introduction of MMCX Connectors - RF & Connector Technology

  MMCX connectors RF microwave coaxial type can be used with frequency range from DC to 6GHz.  These were designed to use for the smallest size of application.  Reliable Snap on coupling mechanism ensures to sustain stable electrical performances.  RF microwave coaxial MMCX connectors has very low RF leakage by this unique mechanical structure.

  As other connector types, these materials are called per their polarities as MMCX Plug, MMCX Jack, MMCX male, MMCX female etc.

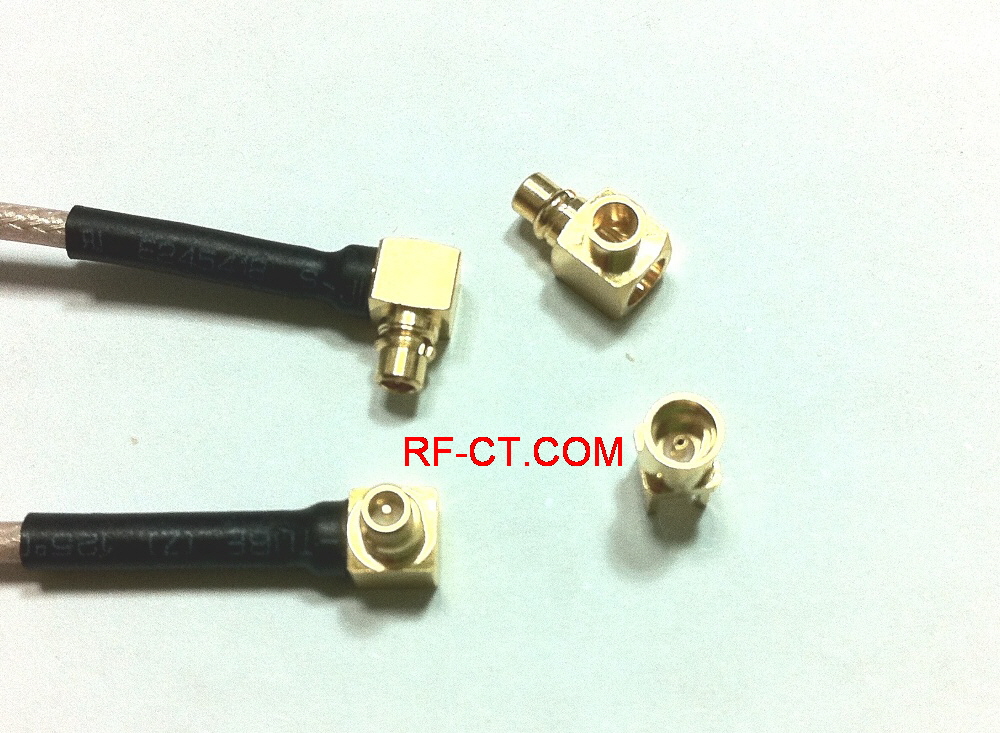

mmcx connectors RF coaxial

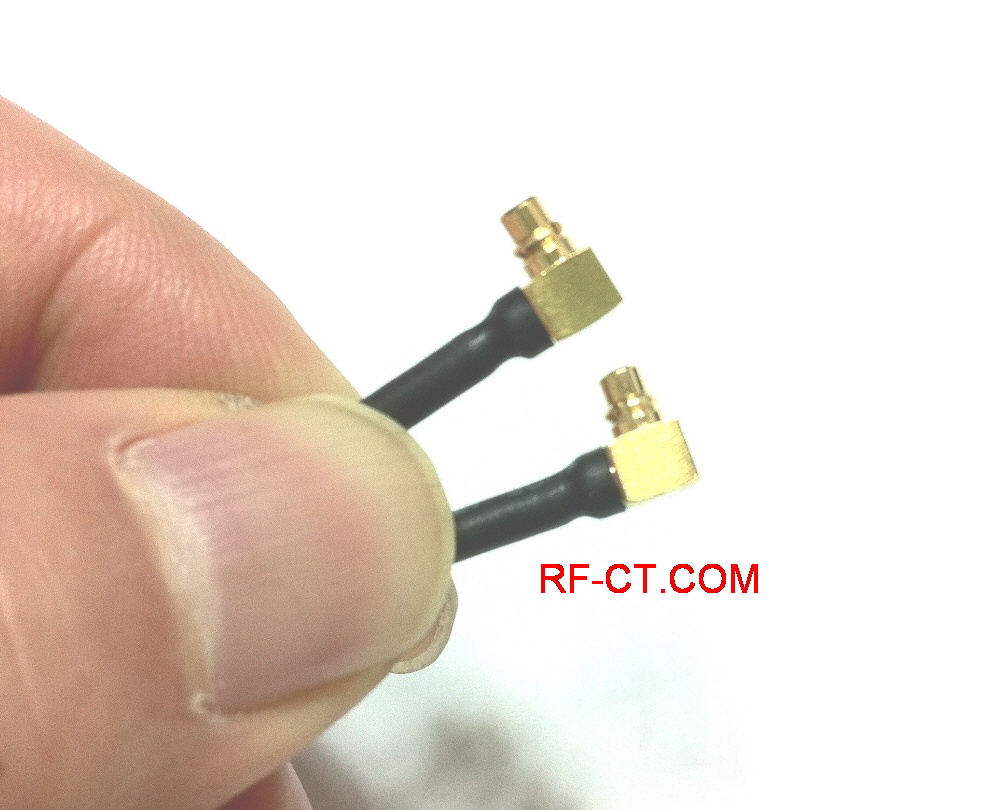

mmcx connectors RF coaxial - plug, right angle type

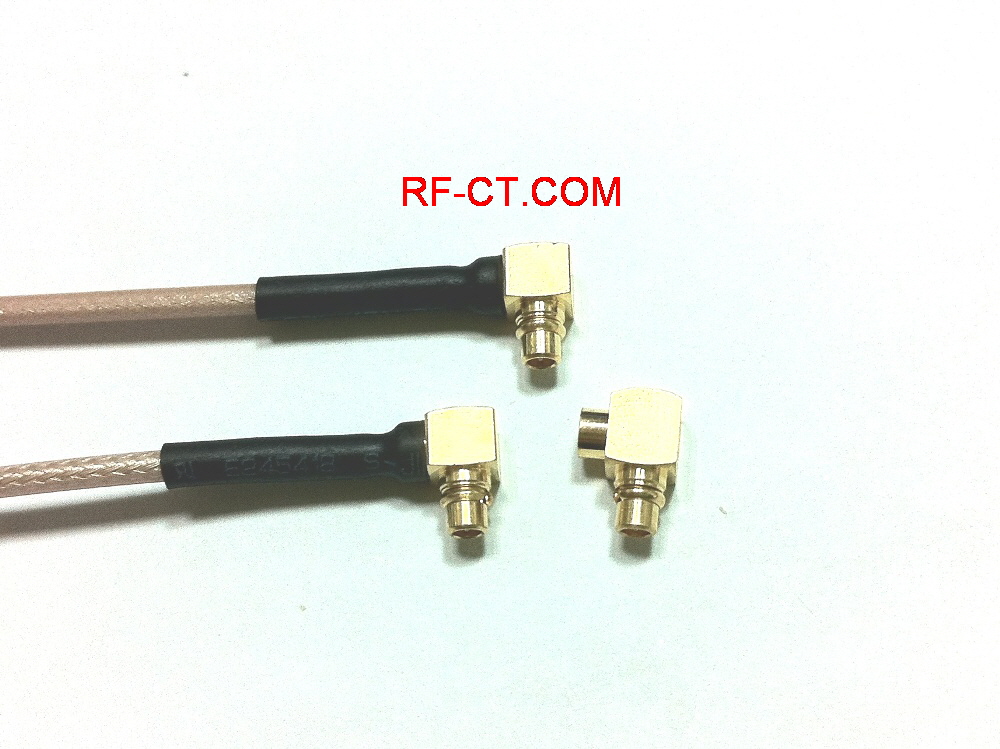

mmcx connectors rf coaxial - plug, right angle type 2

mmcx connectors rf coaxial family

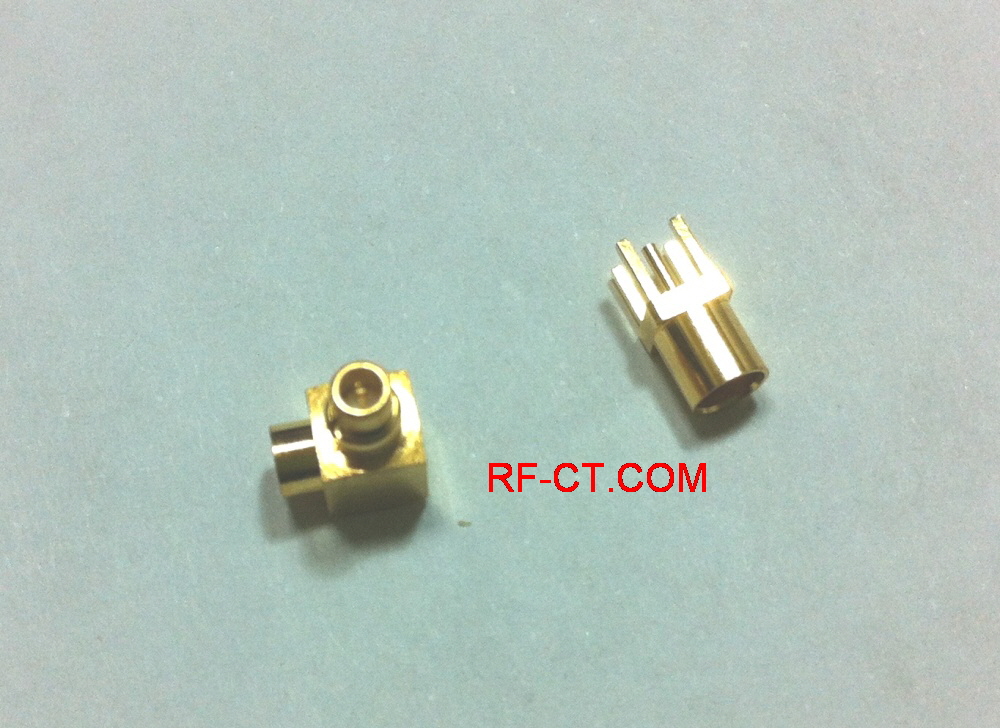

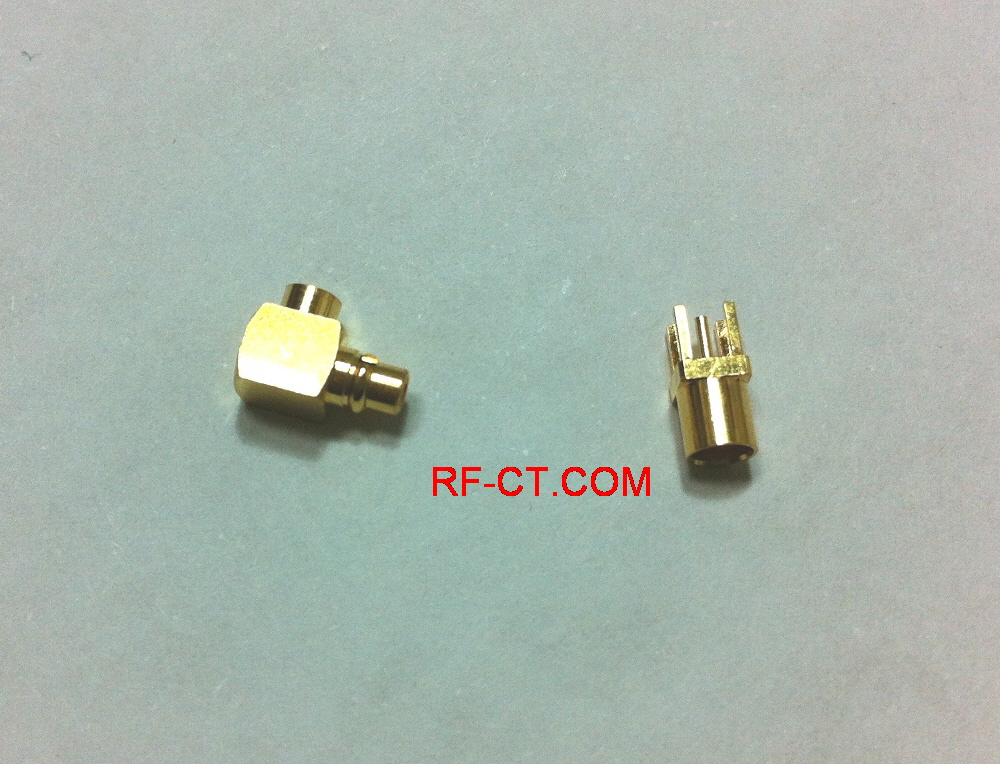

mmcx connectors rf coaxial - straight, right angle type

Interface Dimension:

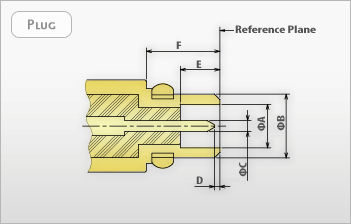

MMCX Connectors RF Coaxial - Plug Interface

MMCX Connectors RF Coaxial - Jack Interface


Click below URL for more detailed information about MMCX connectors!

<<MMCX Connectors Specification>>

<<MMCX Connectors for Semi Rigid Cables>>

<<MMCX Connectors for Flexible and RG cables>>

<<MMCX Connectors for Bulk Head type an PCB>>
