SS 405 Cable - Multi Flexible 085 Type?

  Multi Flexible 085 type(SS405 cable) is a kind of  50 ohm cable.  Its outer diameter is 2.62mm and Insulator is PTFE.  The Frequency range is upto 18GHz, and mainly used in test cables.  The inner conductor is solid type and has good flexibility.  Mating connectors are usually SMA, TNC, N type connectors.

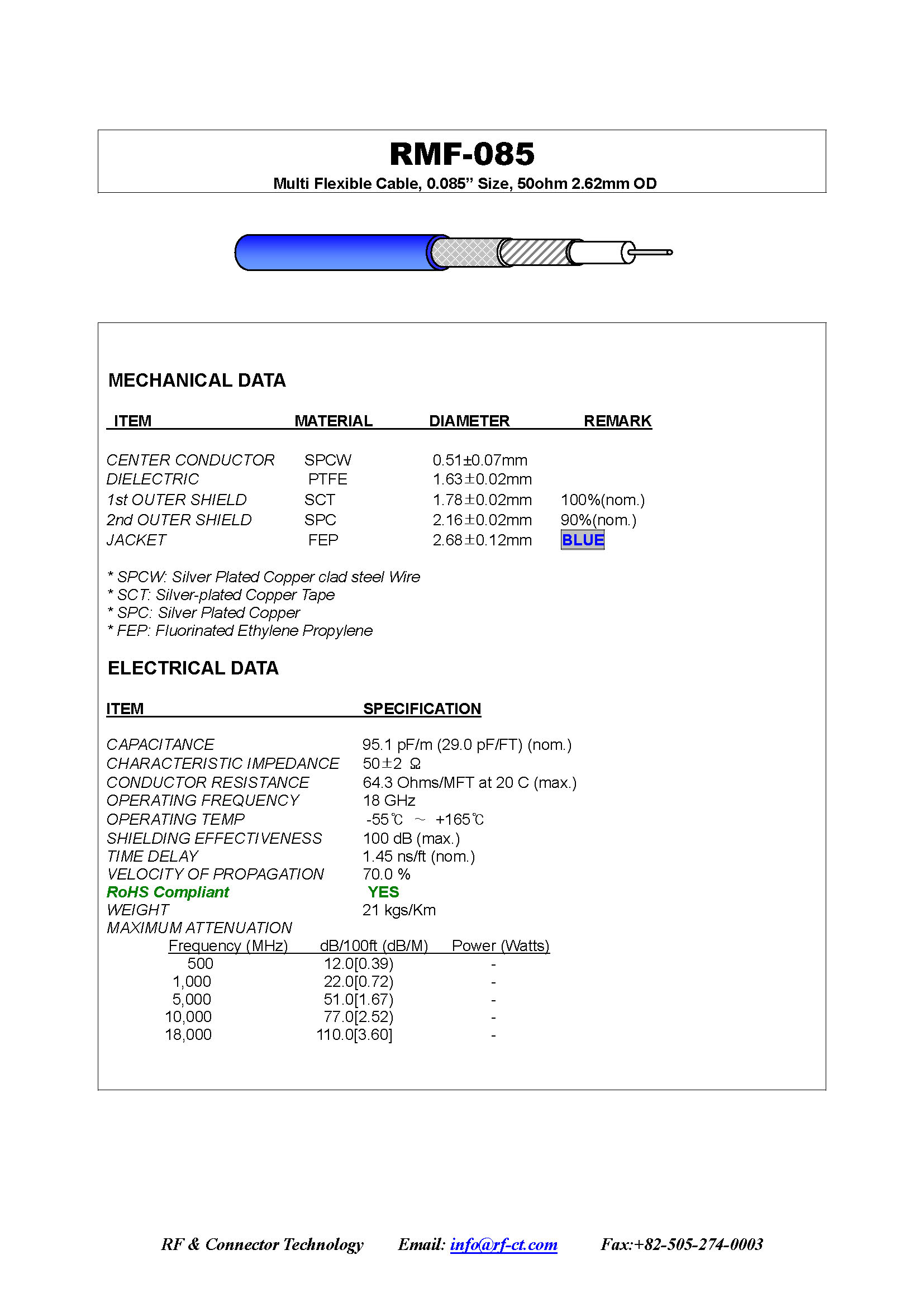

 Data Sheet:

  xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

To see similar size or application, click below link!

<<Similiar sized cables of RMF085 cable>>
