Q&A > SS402
cable
SS
402 Cable - Multi Flexible 141
Type?
Multi

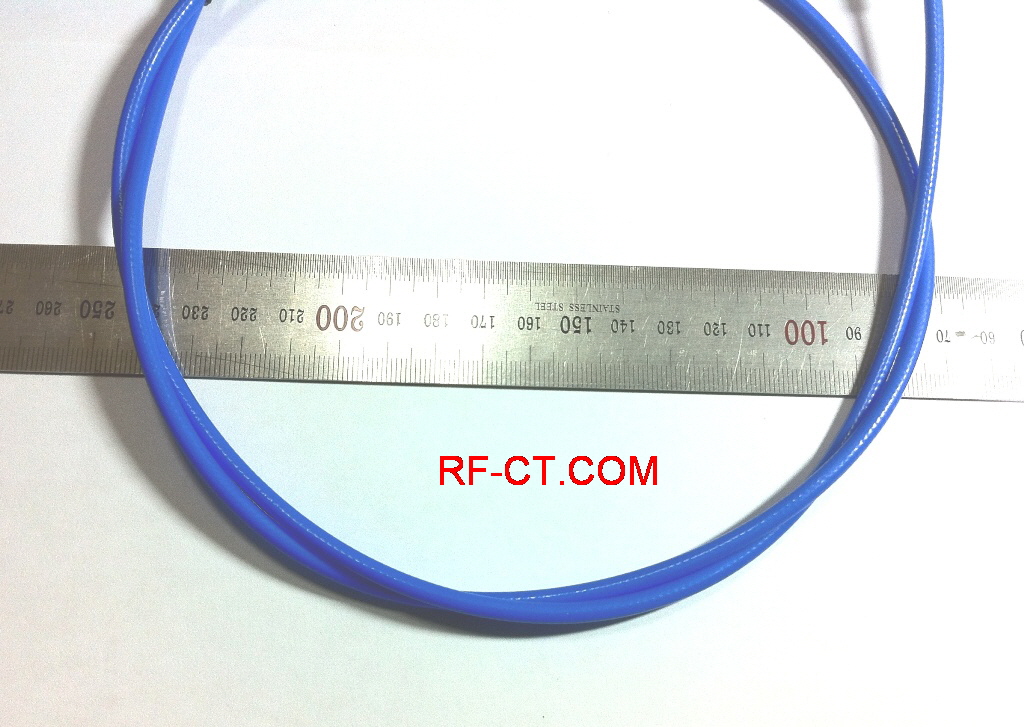

Flexible 141 type(SS402 cable) is a kind of 50 ohm cable.
Its outer diameter is
4.01mm and Insulator is PTFE.
The Frequency range is
upto 18GHz, and mainly
used in test cables. The inner conductor
is solid type and has
good flexibility. Mating
connectors are usually SMA,
TNC, N type connectors.

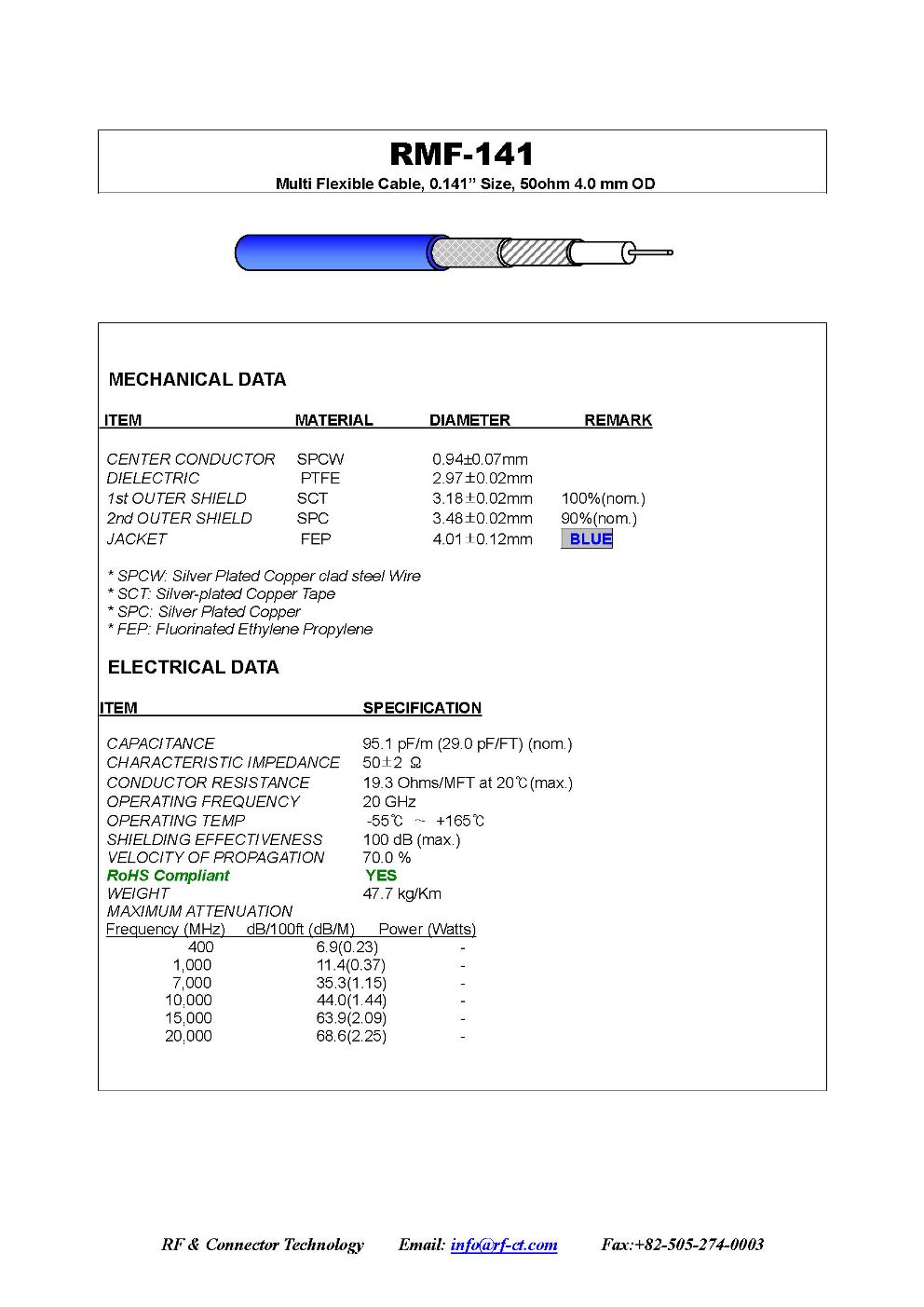

Data Sheet:
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
To see similar size or application
of SS402,
click below link!
<<Similiar sized cables of SS 402 cable>>
