Hand
formable
141 cable - Semi Flexible -
RSF141?

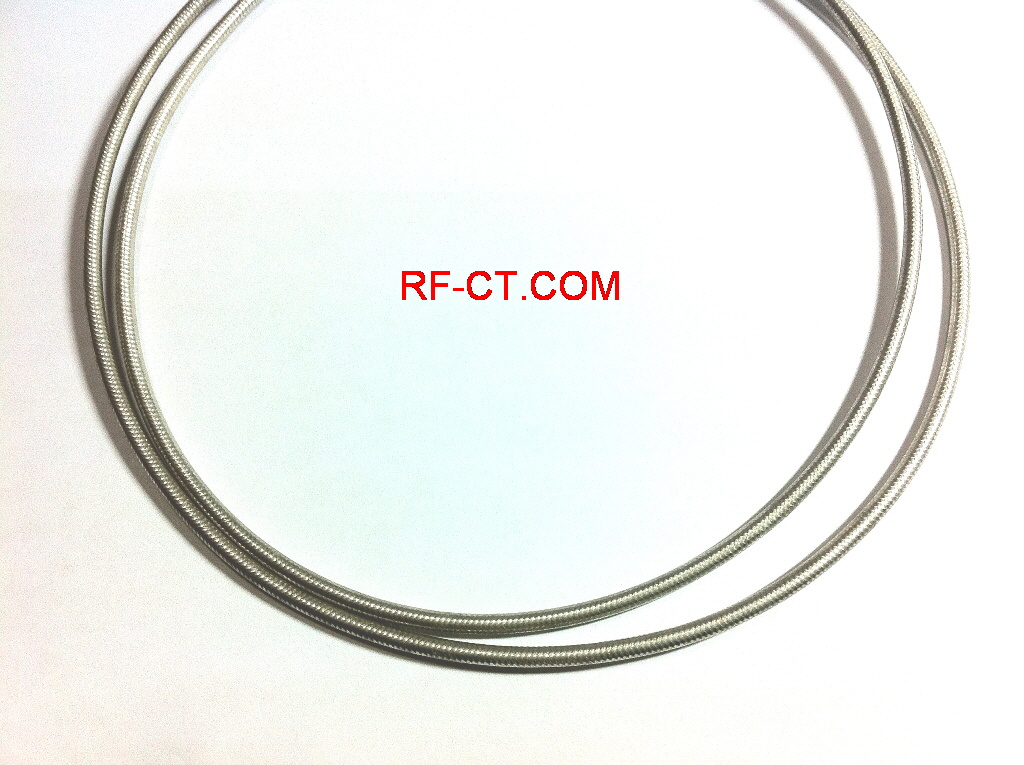

Hand
formable 141 type(RSF141 cable) is a kind of 50 ohm cable.
Its outer diameter is
3.56mm and Insulator is PTFE.
The Frequency range is
upto 18GHz, and mainly
used in test cables. The inner conductor
is solid type and has
good flexibility. Mating
connectors are usually SMA,
TNC, N type connectors.

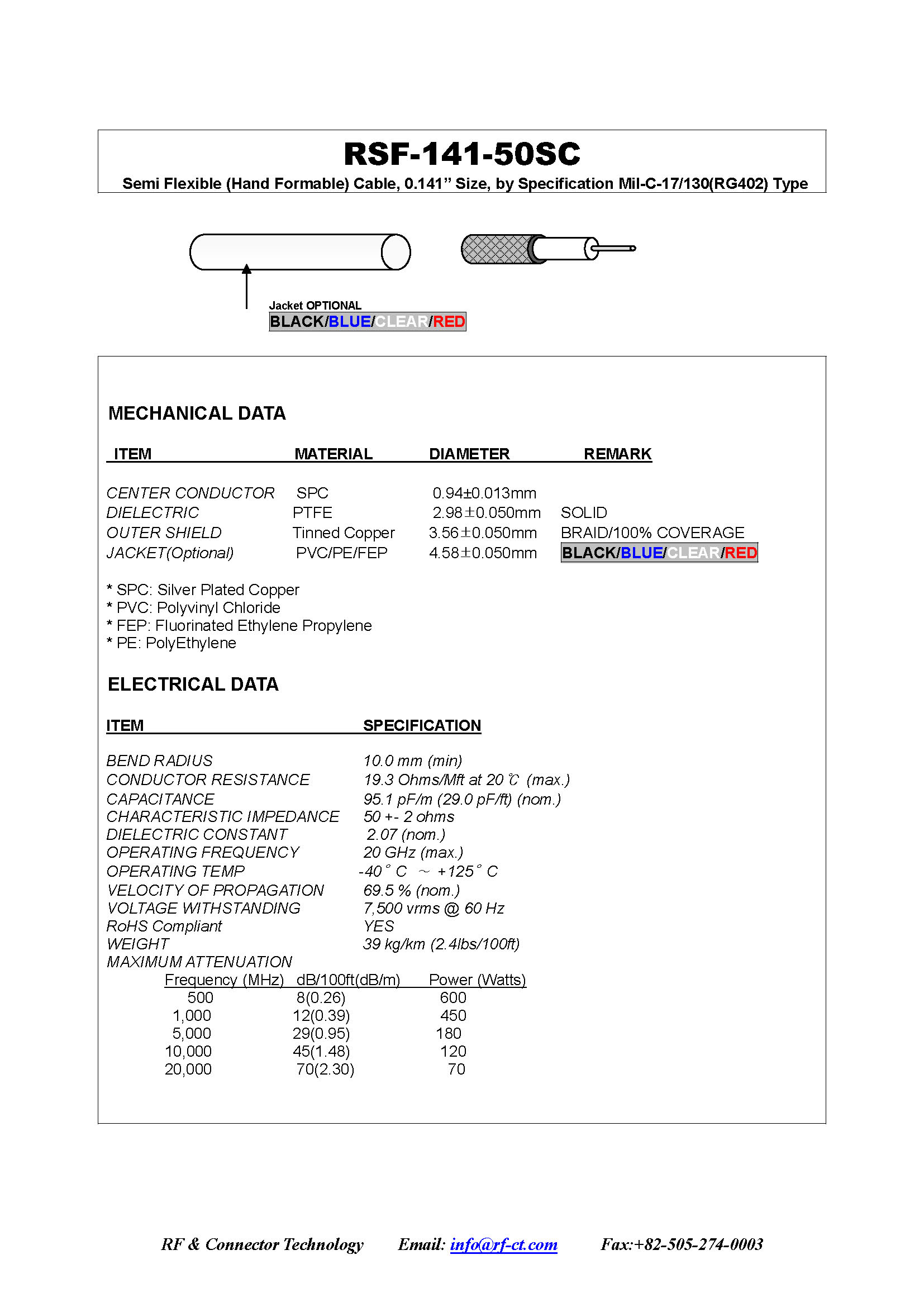

Data Sheet:
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
To see similar size or application,
click below link!
<<Similiar sized cables of RSF141 cable>>
