Hand formable 047 cable - Semi Flexible - RSF047?

  Hand formable 047 type(RSF047 cable) is a kind of  50 ohm cable.  Its outer diameter is 1.19mm and Insulator is PTFE.  The Frequency range is upto 18GHz, and mainly used in test cables.  The inner conductor is solid type and has good flexibility.  Mating connectors are usually MMCX, MCX, SMA, SMB connectors.

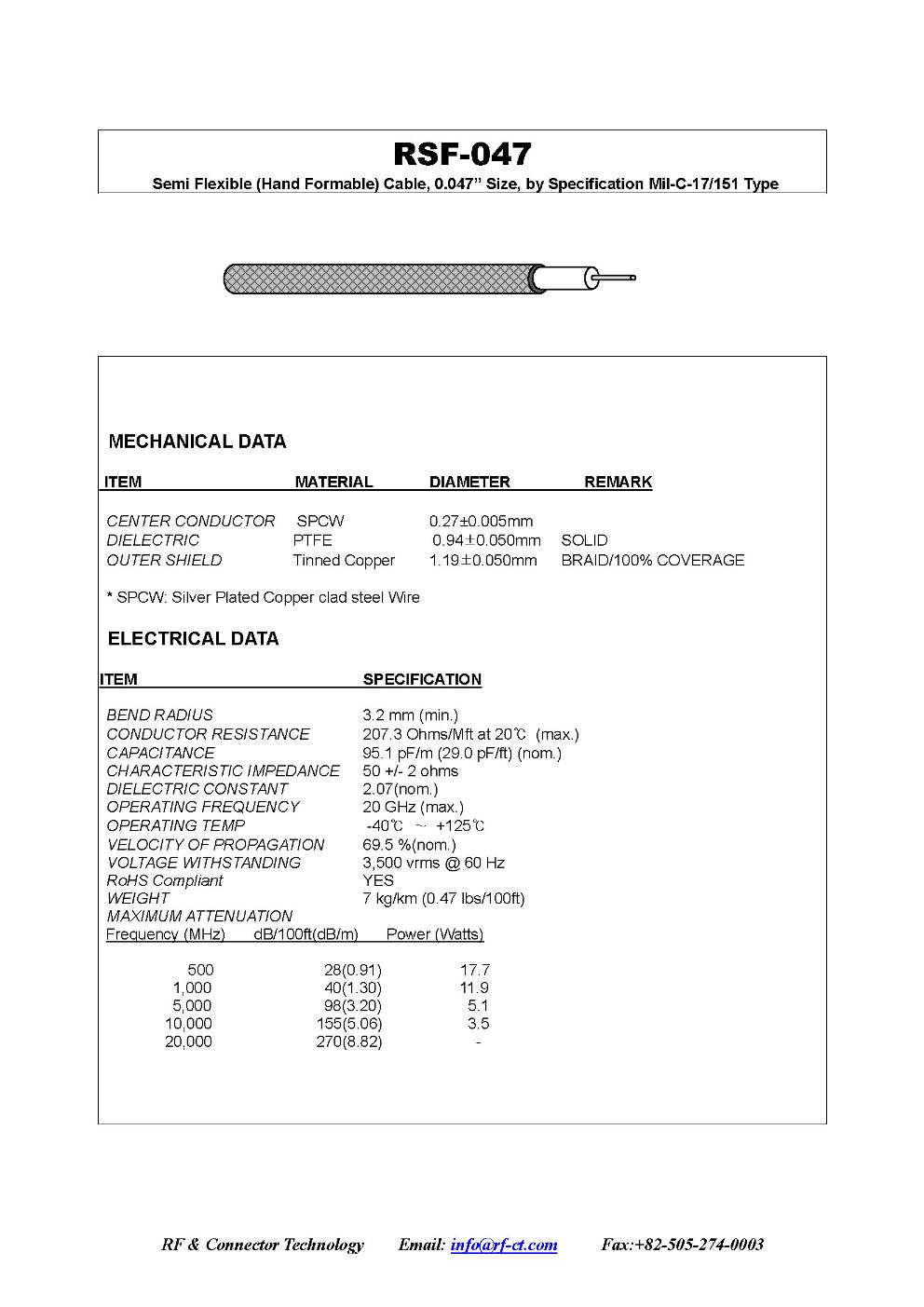

 Data Sheet:

Hand-formable 047 cable - Semi Flexible 047 type - Specification


To see similar size or application, click below link!

<<Similiar sized cables of RSF047 cable>>
