RF Bias Tee?

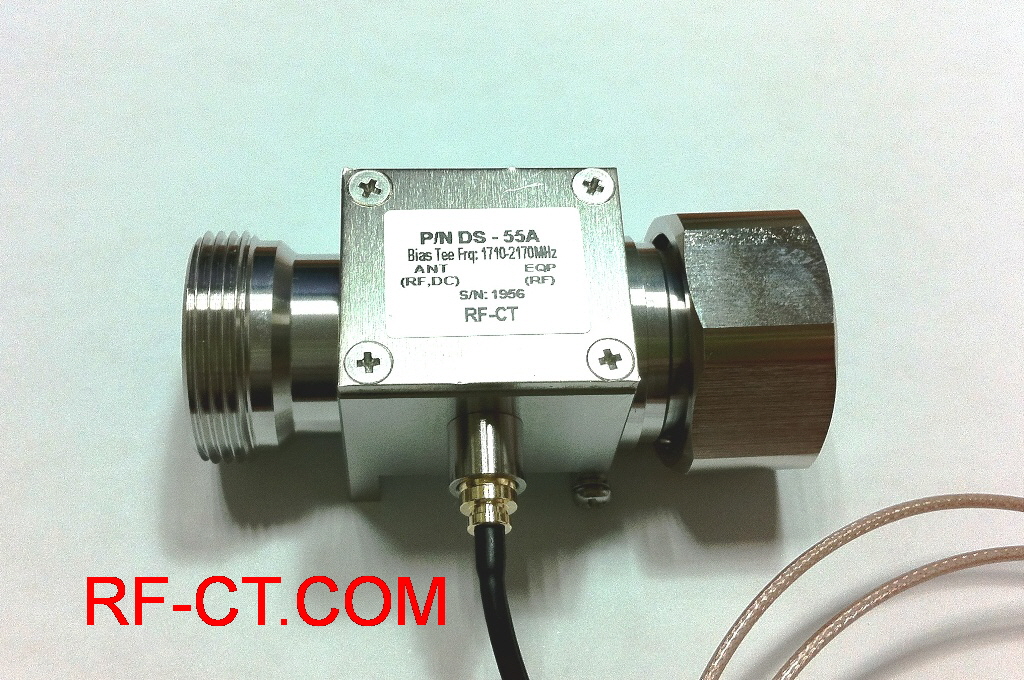

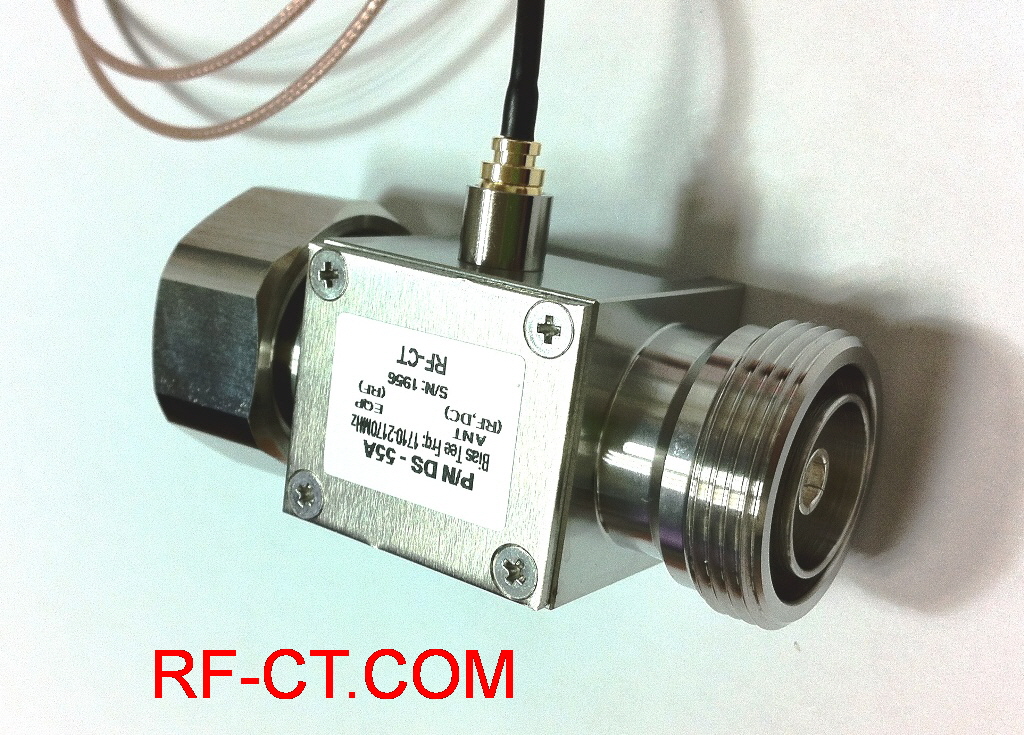

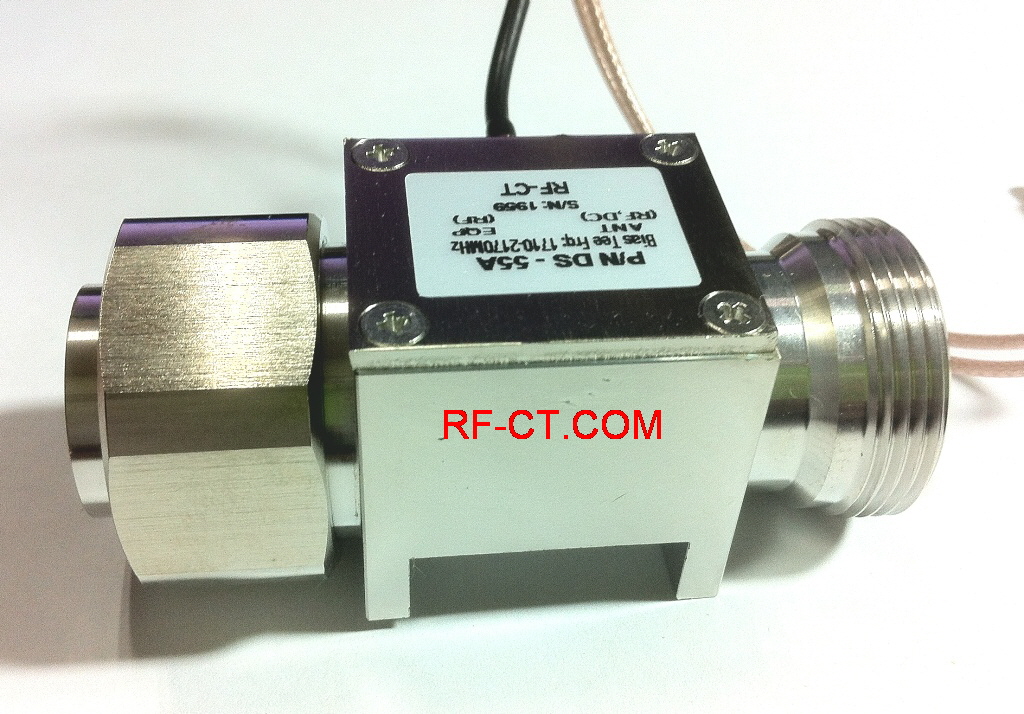

 Photos of RF Bias Tee 7/16 DIN type:

  RF Bias tee MW components manufactured by RF & Connector Technology are available in a wide range of frequencies.
Our Bias tee is a three port network used for setting the DC bias point of some electronic components without disturbing other components.  RFCT Bias-Tees are combined high performance components & connector and PCB Launching technology.  These are suitable for RF & Microwave application and optical communication where laser and photodiode biasing. Several bias tee connector choices are available.

ex) N type Bias Tee, 7/16 type Bias Tee

For more details, please contact our sales team.
