Title  RG58 (RG 58) C/U,RF cables coaxial, PE,50hom
Writer   E-mail

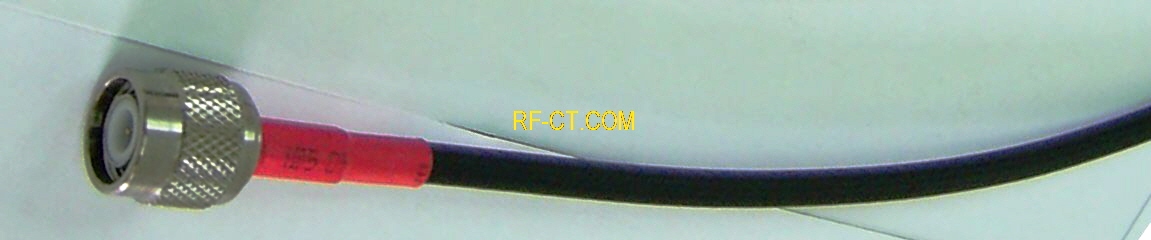

RG 58 cables C/U,Solid PE Insulated Cable, 4.95mmOD, 50ohm

RF cables RG-58 is a type of coaxial cable often used for low-power signal and RF connections. The cable has a characteristic impedance of either 50 or 52 Ω.  There are several versions covering the differences in core material (solid or braided wire) and shield (70% to 95% coverage). Most two-way radio communication systems, such as marine, CB radio, amateur, police, fire, WLAN antennas etc., are designed to work with a 50 Ω cable. RG58 cable is often used as a generic carrier of signals in laboratories, combined with BNC connectors that are common on test and measurement equipment such as oscilloscopes.
RG-58 cable can be used for moderately high frequencies.

RG58 cable

MECHANICAL DATA
ITEM                  MATERIAL DIAMETER    REMARK
CENTER CONDUCTOR TC          0.90±0.02mm    Strand 19/0.182mm
DIELECTRIC          PE          2.95±0.15mm    SOLID
OUTER SHIELD          TC          3.60±0.15mm    96%(nom.)
JACKET          PVC          4.95±0.20mm    BLACK
* TC: Tin Copper
* PE: PolyEthylene
* PVC: Polyvinyl Chloride
ELECTRICAL DATA
ITEM                           SPECIFICATION
CAPACITANCE                  101.0 pF/m (30.8 pF/FT) (nom.)
CHARACTERISTIC IMPEDANCE 50±3 Ω
OPERATING FREQUENCY 1 GHz
OPERATING TEMP          -40℃ ∼ +85℃
OPERATING VOLTAGE          1,900 vrms (max.)
WEIGHT                  38.6 kg/Km
MAXIMUM ATTENUATION
Frequency (MHz)   dB/100ft (dB/M)  Power (Watts)
   100            4.8(0.16)                        -
   200            6.7(0.22)                        -
   400            9.7(0.32)                        -
   800           15.2(0.50)                       -
 1,000           17.3(0.57)                      -
 2,000           26.2(0.86)                      -
 3,000           35.0(1.15)                      -
 5,000           46.6(1.53)                      -
